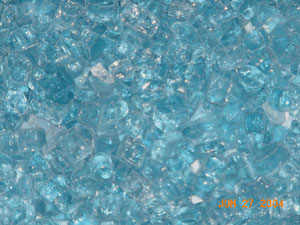

Brian Jensen's propane fire pit with a 36" square pan and 24" Stainless Steel double fire ring under a combination of 1/4" Azurlite and 1/2" Azurilte.
Now filled with lava rock (crushed 1/4" 3/8") over 3/8" 1/2" crushed. Remember the larger is under the smaller to keep the glass from falling through.
Above a flex line was installed to raise the ring to the surface. You don't want to leave the ring at the bottom unless you want an explosion or if you want to get rid of the significant other.
Pour more crushed lava to make the desired shape of the fire pit and test burn for flame pattern.
Azurlite, Scarlet Topper, Red Topping, Ice, Copper Blue Topper, Copper Blue is a chameleon as when it gets hot it turns green and when it cools it turns back to blue!
Great job and very creative.
The fire pit below has Azurlite, 1/2" Azurlite, Ice Ice Ice, Starfire and Platinum in the center. Lava rock was used to minimize on the use of glass to keep it in the budget.
The fireplace below is in Palm Springs and was installed by John, our customer.
He used a sand base with 1/2" Azurlite base glass on top.
The fire pit below is in Boise! It has
Evergreen Base Glass and Evergreen Reflective Base Glass
Azurlite Base Glass and Azurlite Reflective Base Glass
Ford Blue Base Glass and Ford Blue Reflective Base Glass. Looks great.
Makes me want to go to Boise!
On this page (as if you needed another page) We are going to show you how to build a basic fire pit for your deck/ back yard.
This was built by Glenn Harvey of British Columbia.
This first picture is the frame he had started with.
You can make one from metal studs, aluminum studs, etc. Anything non flammable.
Wrap it with wonder board or durock/ cement board.
Below you can also wrap it with wire for better adhesion to the backer board.
This fire pit was natural gas. We also manufacture the burners for propane. Well, we are the only ones who actually manufacture propane burners for your projects.
Below you can see the gas connection coming up from the deck. Glenn used a pan but he also could of used an aluminum/ stainless steel base plate as well.
The stacker stone is now being applied.
As you can see below the trimming valve is installed on the side. You would be surprised on how many plumbers don't think of this little detail, a valve to turn it on or off. I have seen the valves installed inside of the pit or not even at all. You also need to be careful as to not have a gas line installed that is too small for the application.
Now the stone and cap are done, great and simple job!
Below you an see the larger filler lava rock was installed. If a flat plate were to have been used you wouldn't need the larger filler lava rock base.
Below our crushed lava was used to cover the larger lava rock to insure the glass does not fall through. This makes an even base. What ever shape you make the lava is the shape the glass will take.
The stone on the side of the fire pit used was to match the stone on the house as well. Looks awesome!
The colors that were added are as follows:
If you notice below the center of the sun, it changes when it get hot! This one of our chameleons that change when the glass gets hot. If you look real close at the Orange Topper (next to the suns center) as well, it turns a bright cinnamon red when it get hot also! All of our chameleons will be posted when we get a chance. This is just another one of our product lines that we have not had time to further promote.
Above is the fire burning and
below the fire was just turned off.
Glenn spent a few hours placing all of the glass to make this very cool scene. So don't just think you can just throw it on and it knows were to go. Very creative!
The fire pit below was purchased locally and then we converted it to burn propane without soot! The colors used were:
Starfire Base Glass,
Here is what is looked like when he started. These manufactures have no imagination!
This only cost about $100.00, complete!
Azurlite Base Glass with Starfire Base Glass above
Jasmine Bals Modern Free Form Surround with Sterling Silver Panels and FireBalls!
Click HERE or on the picture below to see all of the pictures of the Corten Steel Fire Pit!
